36V Dual Motor Electric Skateboard Controller Mainboard with Wireless Remote – Hub Motor ESC Kit

Meet the heart of your electric ride: the 36V Dual Motor Electric Skateboard Controller Mainboard. This compact, hardened-plastic drive unit is purpose-built for hub-motor setups, delivering precise torque, reliable protection, and a rider-friendly experience without sacrificing performance.

Why this controller stands out

• Four speed modes and four braking force modes give you tailored control for city streets, steep hills, or cruising lanes. Switch from smooth, low-torque starts to punchy acceleration with a tap.
• Two-way, wireless 2.4G remote with automatic frequency hopping reduces interference and keeps you in command, even in busy environments. Includes a simple pairing method for quick setup.
• Downhill energy recovery and regenerative braking help reclaim energy on descents, extending range and improving efficiency without adding complexity.
• FOC drive with Hall-based induction sensing ensures smooth torque, steady throttle response, and reliable performance across varying loads and speeds.

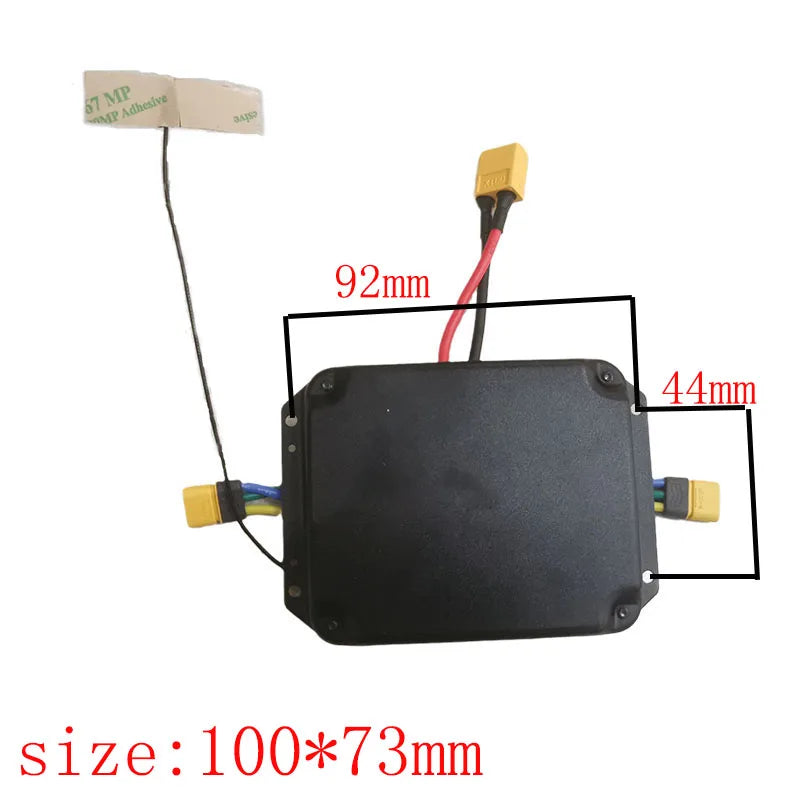

• Compact, durable enclosure built from high-quality plastic for a long service life, sized at 100 x 73 mm to fit a wide range of longboards and light-duty scooters.
• 36V, 12A rated current, 430W power with a maximum motor speed of 3000 rpm, designed to drive hub motors efficiently while staying within safe thermal limits.
• Comprehensive protection against overvoltage, undervoltage, overheating, stall, and reverse direction, plus safeguards for speed control and forced braking modes.
• Versatile drive options include forward/reverse with one-click switching, and dedicated braking modes that can be tuned to your riding style and terrain.

Key specs at a glance

• Project type: Dual Drive Controller
• Material: Plastic; Color: as shown
• Rated voltage: 36V; Rated current: 12A; Power: 430W
• Maximum bearing capacity: 120 kg
• Drive mode: FOC; Hall-based induction mode
• Remote control: Built-in 400 mAh lithium battery; 2.4G wireless with multiple frequency points
• Protection: Overvoltage, undervoltage, overheating, stall, directional lock, overflow
• Compatibility: Suitable for hub motors and electric drive systems in longboards and similar platforms

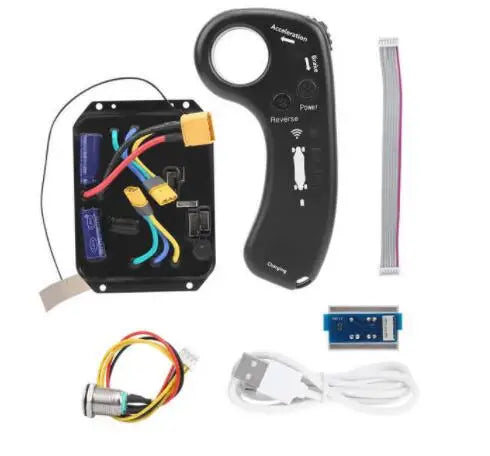

• Includes: 1 set controller; remote control option available

What makes it uniquely capable

This controller is not a one-size-fits-all component. It’s designed to integrate seamlessly with hub motors on a wide range of longboards, delivering robust torque and predictable braking behavior. The four-speed and four-brake profile combinations let you configure your ride for sketch-free launches, precise throttle control on climbs, and controlled deceleration on crowded streets. The 2.4G wireless link with automatic frequency hopping minimizes dropouts, while regenerative braking helps squeeze every watt of energy back into the pack on downhill runs.

Who is this for?

• DIY electric skateboard builders seeking a compact, reliable dual-motor controller for hub-motor configurations
• Enthusiasts who want precise throttle response, safe braking behavior, and energy recovery without complicated setups
• Users upgrading an existing board to benefit from enhanced protection features and improved motor control

Practical tips and usage insights

• Pairing the remote with the mainboard is straightforward: power on the board, enter pairing mode with a long press, then activate the remote to complete pairing. The LED indicator provides clear feedback to confirm connection.
• Choose your drive mode based on terrain: use low-speed, high-torque settings for steep hills, and switch to high-speed modes for open roads where control and stability matter most.
• Enable downhill braking to recover energy during descents, but monitor battery temperature in extended downhill sessions to avoid overheating.
• Regularly inspect the enclosure and connectors after wet or dusty rides to maintain optimal performance and longevity.

What’s included and how it fits your build

The kit is designed as a plug-and-play upgrade for hub-motor setups and compatible longboards. It combines the dual-drive controller with a remote control option, providing a complete, scalable solution for a safer, more enjoyable electric ride. For builders seeking a compact, durable, and feature-rich controller that prioritizes precise control and protection, this module is purpose-built to deliver.
